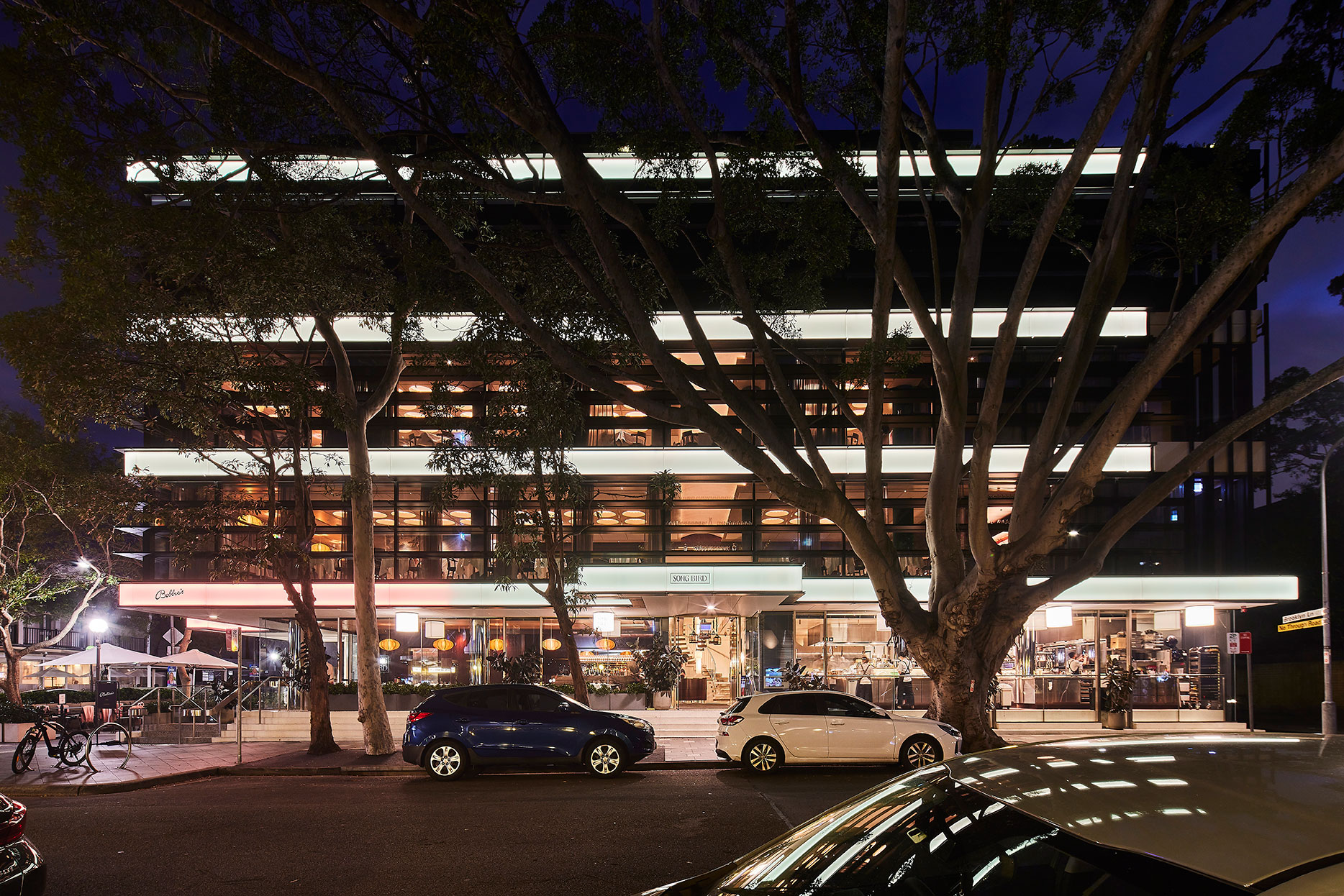

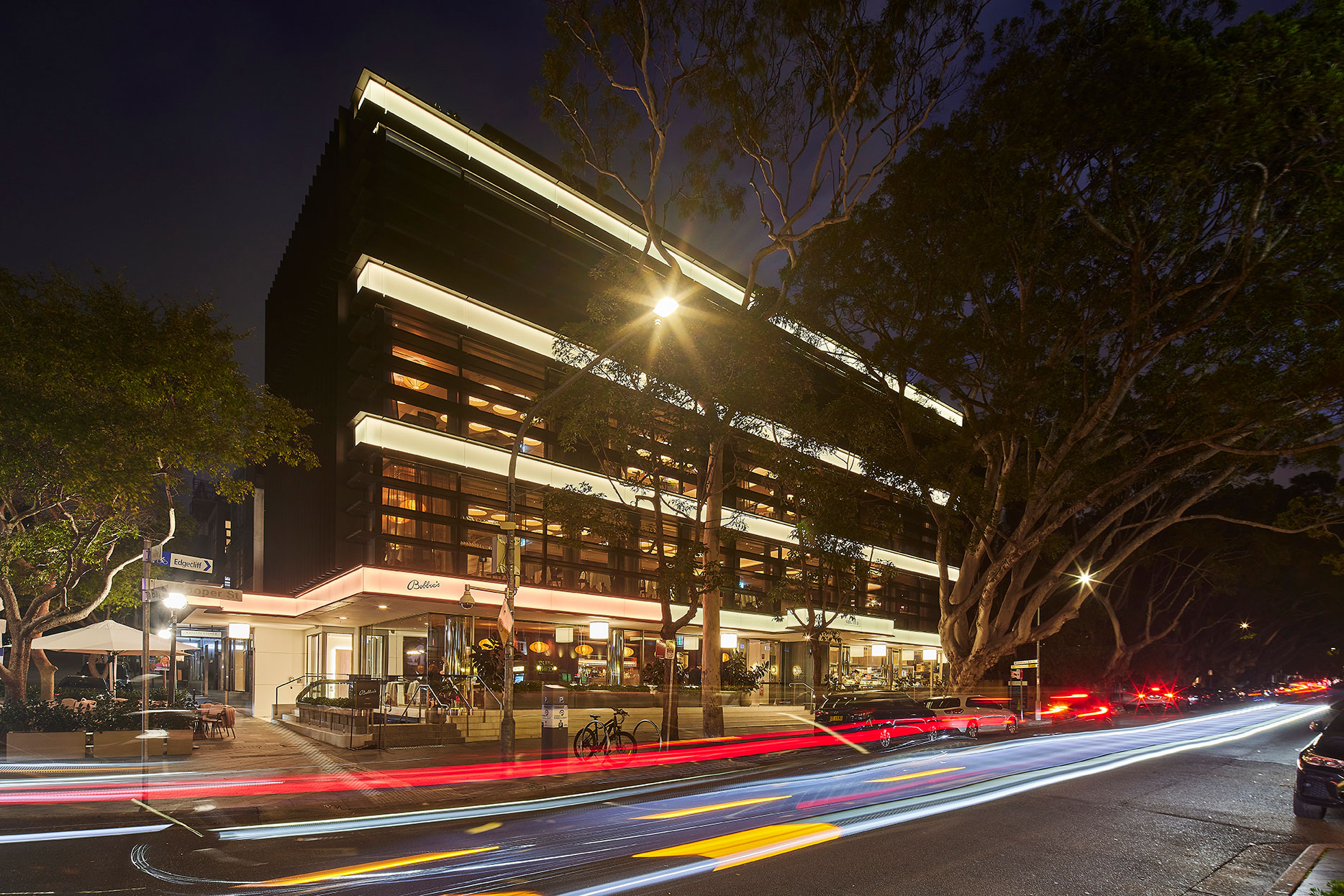

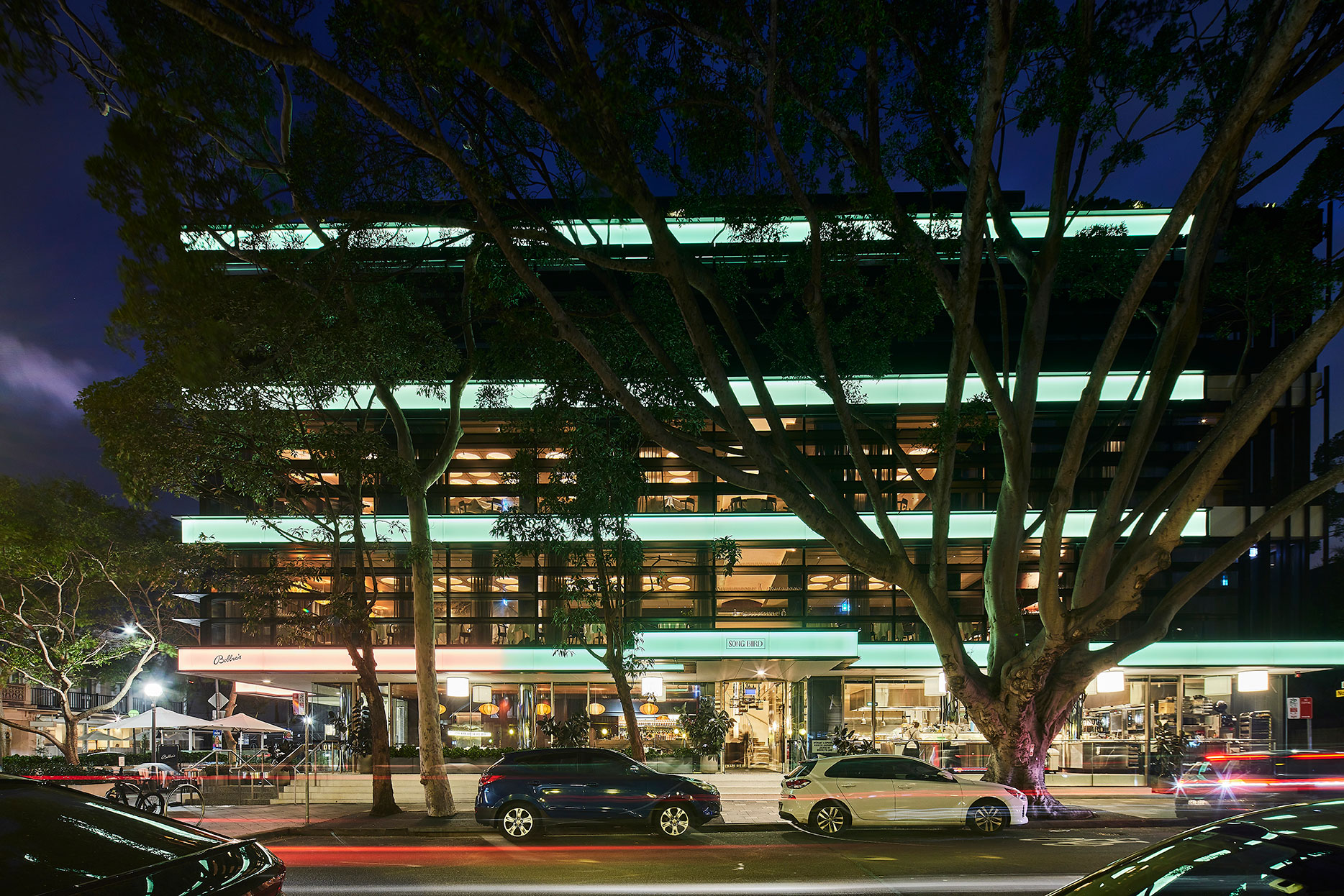

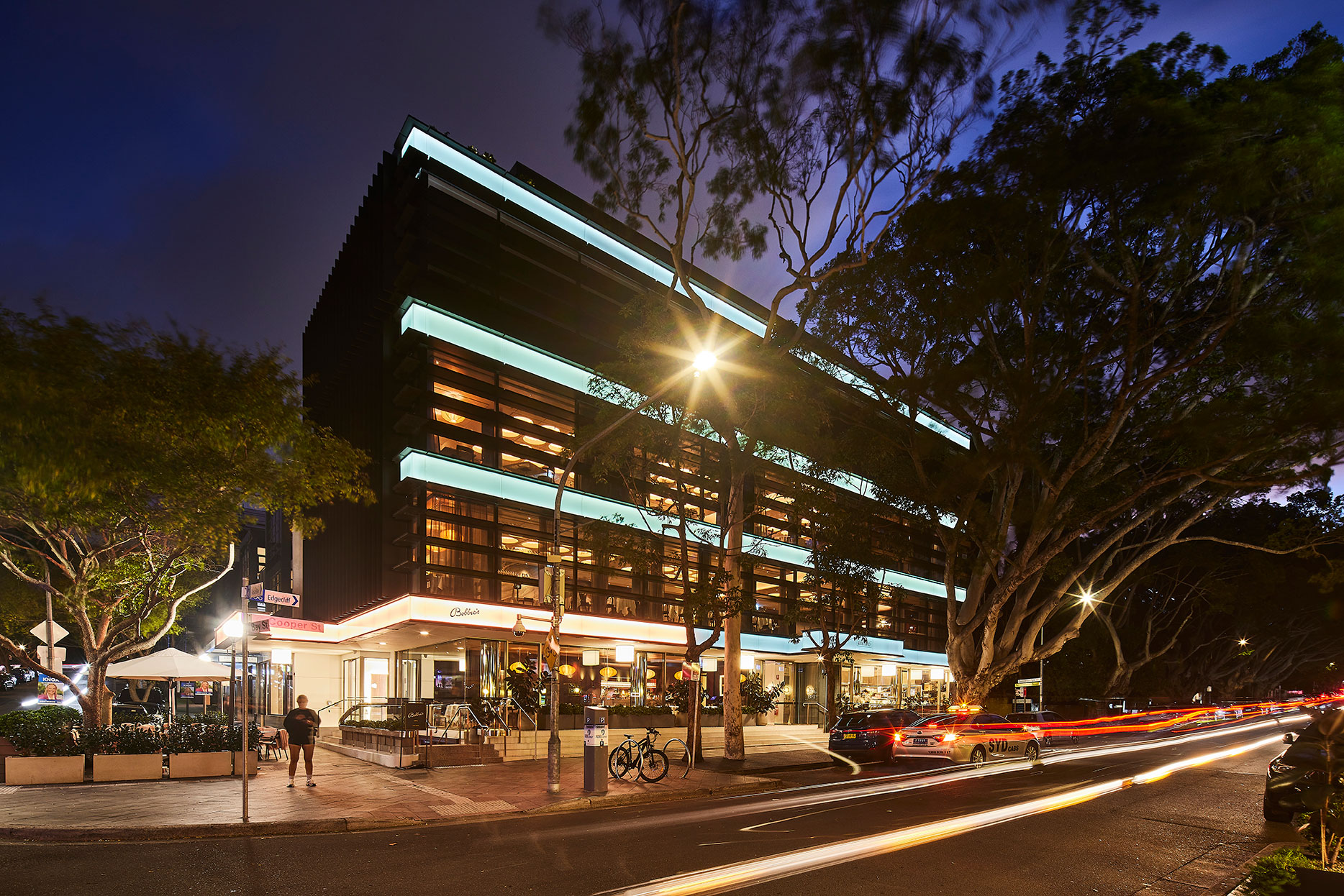

The Song Bird Restaurant in Double Bay demonstrates Arch-System Fabrication’s expertise in sophisticated commercial glazing and aluminium solutions for hospitality environments. The frameless ground-floor glass shopfronts were carefully crafted to respect heritage requirements while providing uninterrupted views. Integrated horizontal aluminium sunshades enhance both the visual appeal and functionality, while custom-engineered glass LED light boxes fitted to the suspended sunshades create a striking design feature. These solutions effectively reduce solar heat gain and glare without compromising the building’s clean architectural lines.
In recognition of the project’s design and construction excellence, Arch-System Fabrication was Highly Commended at the 2025 AGWA Design Awards NSW, underscoring our commitment to innovation, precision, and aesthetic excellence in high-traffic commercial spaces.
Builder: Alliance Living.
Type: Office & Restaurant.
Address: 24 Bay St, Double Bay, NSW 2028.
Products: External Framing: Capral 629 Flushline DG Series framing having profiles of 150x55mm,
Sliding Doors Capral 900 High performance sliding door,
Capral BL45 Sunshades to vertical and horizontal,
Aluminium Cladding, Circular Slaglight,
Frameless shopfronts with pivot doors.
Glass: 24mm DGU Viridian Soltech Neutral toughened,
Light box spandrel 9.52mm white translucent toughened laminated,
17.52 mm EnergyTech Clear Laminated.
Finish: Dulux Electro Dark Bronze Flat 906‐8184F & Dulux Duratec Zeus Surfmist Matt 90Z2266M.
Completed: August 2024.
